NVIDIA AGX Xavier High Performance AI Computer "Jetson AGX Xavier"





      Description

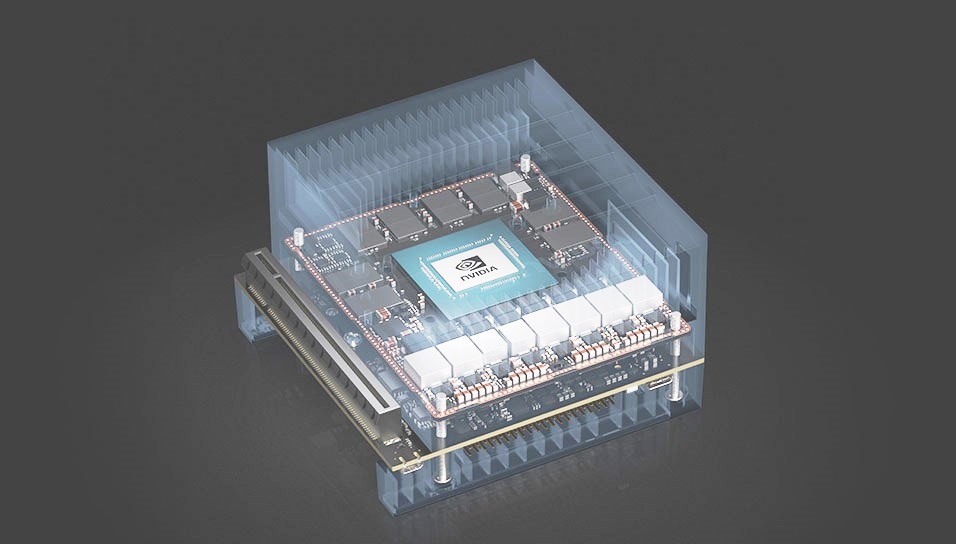

            Jetson™ AGX Xavier™ SoM module



The NVIDIA® Jetson™ AGX Xavier™ system-on-module blends industry leading performance, power efficiency,
integrated deep learning capabilities and rich I/O to enable emerging technologies with compute-intensive requirements.

Designed for applications converging on artificial intelligence (AI), computer vision (CV) and advanced graphics,
the AGX Xavier™ module is ideal for: Intelligent Video Analytics (IVA), Robotics, Virtual Reality (VR), Augmented Reality (AR) and Portable Medical Devices.

The Jetson™ AGX Xavier™ module delivers up to 32 TOPS of AI performance and benefits from rich set of AI tools and workflows, enabling developers to train and deploy neural networks quickly.







Features











· Processor

CPU : ..............................

Carmel CPU Complex ARM®v8.2 (8 cores) @2.26 GHz (80,000 DMIPS with eight NEON™ FPU).

· GPU

Volta : ..............................

512-core Volta @ 1.37 GHz (10 TFLOPS | 32 TOPS).

· RAM

LPDDR4X : ....................

16 GB 256-bit.

· Storage

eMMC : ..........................

32 GB eMMC 5.1.

· USB

USB : ..............................

3 x USB 3.1 (USB-C), 4 x USB2.0 + USB 3.0.

· Ethernet

Ethernet : ........................

10/100/1000 BASE-T Ethernet (MAC RGMII).

· CAN

M_TTCAN : ...................

Dual CAN bus controller (M_TTCAN 3.2.0).

· Display

Display : .........................

3 x HDMI 2.0a/b / DP 1.4 / eDP 1.4 | HDCP 1.4 and 2.2.

· Camera

MIPI CSI : ......................

16 x MIPI C / D (four 4-lane, six 2-lane, or six 1-lane), up to 2.5 Gbits/sec per pair.

· Audio

Audio : ............................

4 x I2S | 2 x I and Q | PDM | HDA.

· OS

Software : ........................

Linux Ubuntu 18.04 (soft real-time) operating system.

       Additional features: Video Encoder / Decoder, PCIe®, SPI, I2C, GPIOs.





Technical Specifications







· Dimensions:

100 mm x 87 mm.

· Power consumption:

30 W.

· Operating temperature:

-25° C   -   +80° C.





SoM Jetson AGX Xavier Vendor

Nvidia Corporation, USA.
