Xilinx Zynq 7010 SoC "STEMLab"





      Description

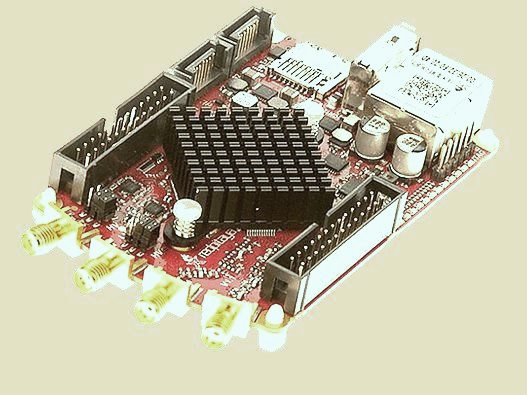

            STEMLab SoC module



STEMLab is available in two versions which both offer the same functions and features, the difference is in the technical specification of high-frequency inputs and outputs, RAM capacity and some other differences.

They are addressed to target different groups and needs. Where STEMLab 125-14 has 14bit input/output channels for highly accurate measurement results in professional environments, STEMLab 125-10 has 10bit input/output channels and is perfect for universities and students.







Features

(STEMLab 125-10   /   STEMLab 125-14)











· Processor

CPU : ...............

Dual-Core ARM® Cortex™-A9 (3,300 DMIPS @667 MHz,  with dual NEON™ FPU).

· FPGA

FPGA : ............

FPGA Xilinx Zynq 7010 SOC.

· RAM

DDR3 : ............

256MB / 512MB SDRAM.

· System memory

Micro SD : .......

Up to 32GB Micro SD Card.

· Console connection

USB : ...............

USB to serial converter required / Micro USB.

· Ethernet

Ethernet : .........

1x Ethernet GigE.

· USB

USB : ...............

USB 2.0.

· WIFI

WIFI : ..............

Requires WIFI dongle.

· Synchronisation

Synch : .............

  -   /   Daisy chain connector (up to 500 Mbps).

· OS

Software : .........

Linux Ubuntu operating system.

· RF inputs

RF In : ..............

2 RF input channels;
125 MS/s sample rate;
10 bit / 14 bit   ADC resolution.

· RF outputs

RF Out : ...........

2 RF output channels;
125 MS/s sample rate;
10 bit / 14 bit   DAC resolution;
SMA connector type.

· Extension connector

Extension : ........

16 digital IOs;
4 analog inputs;
100kS/s sample rate;
12bit resolution;
4 analog outputs;
I2C, SPI, UART communication interfaces;
+5V, +3, 3V, -4V available voltages.



Technical Specifications







· Dimensions:

107 mm x 60 mm x 21 mm.

· Power connector:

Micro USB.

· Power consumption:

1.5A @ 5V.

· Ambient operating temperature:

+5° C   -   +30° C.





SoC STEMLab Vendor

Red Pitaya, Slovenia.

https://www.redpitaya.com/
