PC SC520 i586 Industry Microcontroller



Obsolete product



     Description

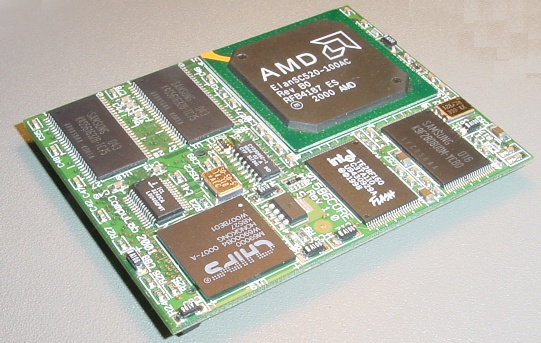

            PC SC520 i586 Core Module

PC SC520 i586 Core Module

The PC SC520 i586 Industry Microcontroller is a custom based 133 MHz PC CPU card which offers numerous functions for embedded applications. The custom designed base board with i586 core module has real-time Linux installed and is compatible with Windows CE and NT / 2000 / 98 / 95, DOS, VxWorks and other PC operating systems. The unit includes up to 64 MB of SDRAM and up to 128 MB of flash. Utility devices contain UART with two serial ports, SSI, ISA and PCI interface, an IDE controller, a battery powered RTC and a programmable watchdog timer. Optional USB, sound and ethernet controllers can be included. It is also possible to add UART,  EPP/ECP parallel port, IrDA, KBRD, Mouse and FDD floppy controllers.

The unit is low powered and does not require a fan.

The custom designed base board can cover all additional requests (I/O capability, PC/104 Bus expansion, SRAM, etc.).










Features











·        Embedded AMD ElanSC520, 133 MHz CPU

CPU : ................

AMD ElanSC520, 133 (100, 66) MHz, i586 core (37 Dhrystone MIPS @ 133 MHz), 16 KB cache, FPU.

·        Embedded BIOS

BIOS : ..............

General Software full-featured BIOS for embedded systems.

·        Onboard SDRAM

SDRAM : .........

16, 32 or 64 MB SDRAM, 32 bit, 66 MHz.

·        Onboard Flash Disk

Flash : ...............

1, 2 or 4 MB NOR (Random Access) Flash (300 KB is used for BIOS) and 16, 32, 64 or 128 MB NAND (Block Access) Flash.

·        Ethernet Port (optional)

Ethernet : ..........

Intel EtherExpress Pro100 10BaseT / 100Base Tx, Activity LED’s.

·        Async Serial Port

Serial : ..............

COM1 (RS232), COM2 (TTL), 16550 compatible. Optional COM3 and COM4 are available.

·        Sync Serial Port (SSI)

SSI : .................

SPI, SCP and Microwire compatible.

·        Parallel Port (optional)

Parallel : ...........

Bidirectional with EPP mode.

·        IDE Hard Disk Interface

IDE : .................

PC / AT compatible.

·        General Purpose I/O

GP I/O : ............

32 programmable Input/Output signals.

·        JTAG Port

JTAG : ..............

Boundary-scan interface based on the IEEE Std 1149.1.

·        DMA Channels

DMA : ..............

8/16 bit, 4 channels, 4 – 16 MHz.

·        Interrupt Controller

PIC : .................

Programmable Interrupt Controller, dual, 8259 compatible.

·        Timers

PIT, GPT, SWT,
WDT : ..............

3 PC compatible timers, 3 general purpose timers, software timer and watchdog timer.

·        Real Time Clock

RTC : ..............

146818A compatible with CMOS RAM.

·        Buses

ISA, PCI : .......

 8/16 bit ISA and 32 bit PCI.

·        Floppy Disc Interface (optional)

FDD : .............

Floppy Controller supports two floppy drives.

·        Infrared Port (optional)

IrDA : .............

Up to 115 Kbps in slow mode and up to 4 Mbps in fast mode.

·        Keyboard Interface (optional)

PS/2 : ..............

Keyboard and Mouse AT PS/2 Controller.

·        USB Interface (optional)

USB : ..............

ScanLogic SL811HST, dual 1.5 Mbit/sec or 12 Mbit/sec, host and slave modes.

·        Audio Interface (optional)

Audio : ............

Cirrus Logic CS4235, Sound Blaster compatible.

·        Custom Designed Base Board

Base Board : ...

The custom designed base board can meet all additional requirements (I/O capability, PC/104 Bus expansion, SRAM, etc.).

·        Real Time Linux

Software : .......

Real Time Linux installed. Compatibility: Windows CE, Windows NT / 2000 / 98 / 95, DOS, VxWorks and other PC operating systems.







Technical Specifications







·        Power

5 VDC supply voltage. Power consuption depends on configuration (less than 1A operation).

·        Environment

Storage temperature –40° to 85° C. Operating temperature 0° to 60° C.

·        Size

Core module 78 x 60 mm. Custom designed base board size depends on configuration.















Core Module Vendor

CompuLab Ltd., Israel.

http://www.compulab.co.il/

(CM-i586: obsolete product)
