SA-1110 CEP 1000 (Custom Embedded Platform)



Obsolete product



      Description

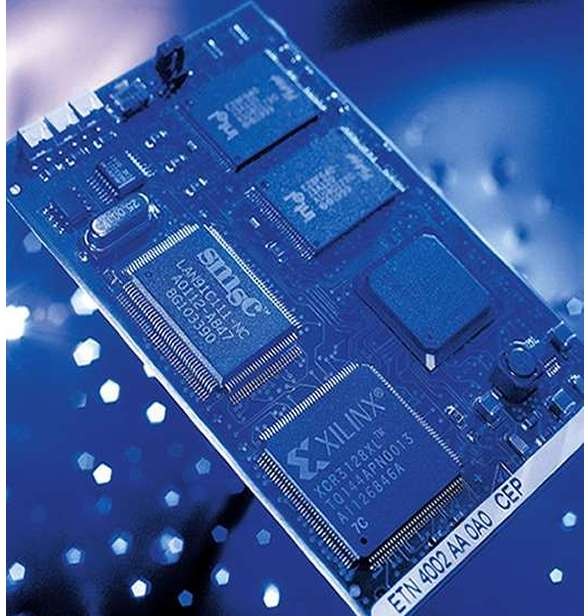

            SA-1110 CEP 1000 Core Module

SA-1110 CEP 1000



The CEP 1000 offers a complete processing platform with Fast Ethernet, display driver interface and standard OS (WinCE, Linux, VxWorks) with real-time processing. With solid hardware solutions, very flexible and highly integrated design adaptable to match dedicated profiles, CEP 1000 is a high performance, low power, and embedded processing solution. High speed, cost effective and power efficient The StrongARM processor offers high power-performance ratio.

CEP 1000 is a complete system on a single, small printed-circuit board (PC card size). It uses standard, non-system specific interfaces, enabling easy upgrade ability to higher performing CEP modules.
















Features











· Intel StrongARM processor

CPU : ...............

Intel SA-1110 (150 Dhrystone2.1 MIPS @ 133 MHz,  235 Dhrystone2.1 MIPS @ 206 MHz), RISC core and DSP capable instruction set.

· RAM Memory

SDRAM : .........

16, 32 or 64 MB SDRAM.

· FLASH Memory

FLASH : ..........

8 to 32 MB Intel StrataFlash.

· Other Memory

EEPROM, SRAM : .

93cXX serial EEPROM and optional SRAM.

· Ethernet Port

Ethernet : ..........

Fast Ethernet IEEE 802.3/802.3u 10BaseT / 100Base Tx.

· Serial Port

Serial : ..............

RS232 / RS485.

· Real Time Clock

RTC : ..............

RT Clock.

· PCMCIA Connector

PCMCIA : ......

Standard PCMCIA 68pin connector.

· Infrared Port

IrDA : .............

Optional IrDA Level 1 interface.

· USB Interface

USB : ..............

USB Slave and optional USB Master.

·   Custom Designed Base Board

Base Board : ...

The custom designed base board can meet all additional requirements.

· Real Time OS



Software : .......

Linux, Windows CE and VxWorks operating systems.



    With many additional features : LCD, IRQ, GP I/O, PCI, JTAG, Audio.







Technical Specifications







· Power

3.3V power, P < 400mW @ 206 MHz.

· Size

Core module 54.0 x 85.6 mm (PC card format).







Core Module Vendor

Iskratel Electronics Ltd., Slovenia.

http://iskratel.com/en/

(CEP 1000: obsolete product)
