Colibri PXA300





      Description

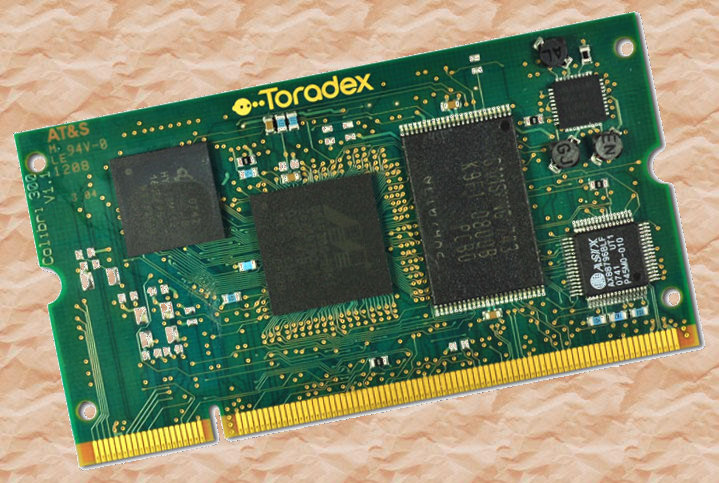

            Colibri PXA300 Module

Colibri PXA300



Colibri XScale® PXA300 is a SODIMM sized computer module based on the Marvell XScale® PXA300 processor. Colibri PXA300 runs at up to 208 MHz. The module is targeting low power systems that still require high CPU performance. It also offers all the interfaces needed in a modern embedded device.

The processor's power consumption is optimized using the Intel Wireless Speedstep® Technology.

The module is suitable for cost sensitive applications where connectivity and standard operating systems are essential.









Features











· Marvell  XScale® processor

CPU : ...............

XScale® PXA300 (266 Dhrystone MIPS @ 208 MHz).

· RAM Memory

DDR : ...............

64 MB SDRAM.

· FLASH Memory

FLASH : ..........

128 MB NAND Flash.

· Ethernet Port

Ethernet : ..........

Ethernet 10/100 Mbit.

· Serial Ports

Serial : ..............

3x UART.

· Watch Dog

WDT : .............

Internal WDT.

· GPIO

GPIO : ............

Up to 120 GPIOs.

· OS



Software : .......

Embedded Linux, WinCE.



    With many additional features : LCD, Audio, I2C, SPI, USB 2.0, SDCard, Keypad.







Technical Specifications







· Power

3.3V DC power, 0.35 < P < 0.85 W.







Module Vendor

Toradex AG, Switzerland.

http://www.toradex.com/
