TI Sitara AM335x "TQMa335x"





      Description

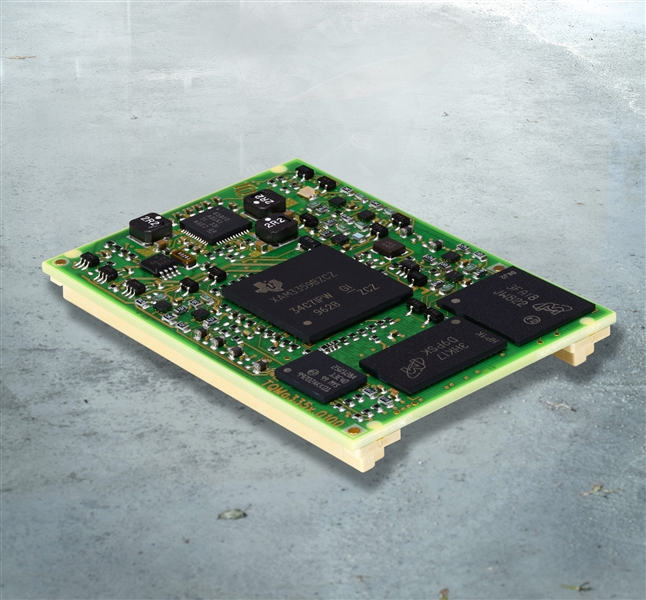

            TQMa335x SoM/CoM module



The TQMa335x Minimodule, based on the AM335x processor, offers a balanced ratio between computing and graphic performance. The basis for this is a ARM® Cortex™-A8 core with up to 1 GHz. The realised memory on the module provides best system support. The module is best suited for visualization and control applications with real time demands.

A large number of interfaces and module functions are implemented in the CPU due to the high level of interface and function integration. This allows the basic board to be developed easily and at low-cost.







Features











· Processor

CPU : ...............

AM3359 ARM Cortex-A8 (1.600 DMIPS @800 MHz,  with NEON™ FPU).

· RAM Memory

DDR3L : ........

256 MB SDRAM.

· FLASH Memory

FLASH : ..........

4 GB eMMC Flash.

· EEPROM Memory

EEPROM : ..........

64 KB.

· Ethernet Ports

Ethernet : ..........

2x Ethernet GigE.

· OS

Software : .........

Soft real-time embedded Linux operating system.

    With additional features : 2x PRU-ICSS (Programmable Real-Time Unit Subsystem and Industrial Communication SubSystem).





Technical Specifications







· Power

3.3V DC power.

· Environment

-25°C - +85°C Extended temperature range.





TQMa335x Vendor

TQ - Technology in Quality Group, Germany.

https://www.tq-group.com/en/home/
